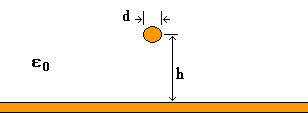

The characteristic impedance (Zo) of a wire over ground can be calculated with the active calculator.

Relative Dielectric Constant	ε_r :
Relative magnetic permeability	ľ_r :
Diameter of wire	d :	mm (a=d/2)
Height	h :	mm
Length	L :	mm
