Microstrip Transmission Line formulas

You are not register | Sign in

	Navigation
	Calculator Microstrip Embeded Microstrip Differential Microstrip Embeded Differential Microstrip Centered Stripline Asymetric Stripline Differential stripline Double Stripline Paired Strips Coplanar Waveguide Coplanar Waveguide with Ground Wire over ground plan Formulas Microstrip Embedded Microstrip Differential Microstrip Embeded Differential Microstrip Centered Stripline Asymetric Stripline Differential Stripline Double Stripline Coplanar Waveguide Coplanar Waveguide with Ground Wire Flat conductor Misc Link

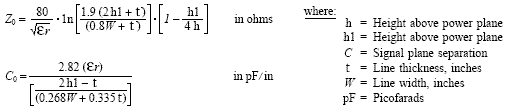

Asymetric Stripline :

IPC - Association Connecting Electronics Industries - www.ipc.org
