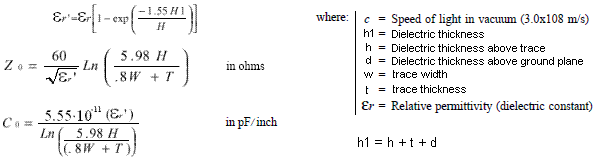

Embedded Microstrip

cf: Wadell, Brian C - Transmission Line Design Handbook Artech House 1991

IPC - Association Connecting Electronics Industries - www.ipc.org
